Solar 5 Way Branch Parallel Connector Photovoltaic Mount Panle for Solar System

Short Description:

T5 Branch Connector: 1 male to 5 female(M/FFFFF) and 1 female to 5 male(F/MMMMM). It is compatible with solar connectors in 10AWG to 14AWG. It could be used for connecting two solar panels in parallel.

Easy to Install: Designed with stable self-locking structure. The connector is connected by riveting. Male and Female head with an automatic lock, insuring easy docking. And you can quick and simple assembly processing and simple removal of plugs without the aid of any extra instrument.

Cable/Connector: Custom

MOQ: 300 Pieces

Supply Ability: 10000 Pieces per day

Factory Cartificate : ISO9001/ UL/ IATF16949

Our Advantage : Cable Assembly, one stop solution for any custom project

Send email to us

Product Detail

Product Tags

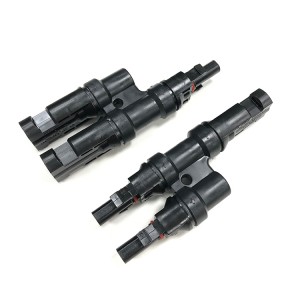

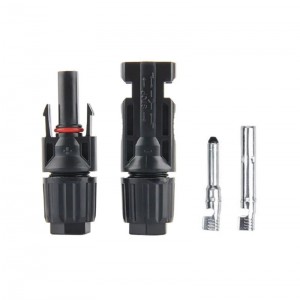

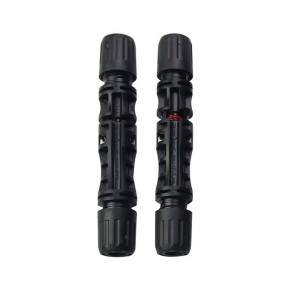

The Y Mc4 Connector is made with PPO material, the contact is made with Copper, silver plated. Premium material makes sure that it can keep working stably in temperature from -40℃ to 85℃. The solar panel connectors have a maximum voltage of 1000VDC and a 20-30A rated current.

Press your fingers to the either side of the built-in lock on the male connector can connect and disconnect the connector easily, without using other tool.

Rate voltage	1000V
Rated current	20-30A
Test voltage	6KV(50Hz, 1min)
Protect degree	IP67
Insulation material	PPO
Contact material	Copper sliver plated
Operating temperatur	-40°C~+85°C
Contact resistance	≤5mΩ
Withdraw / Insertion force	≥50N
Locking system	Snap in
Suitable cable	2.5mm² / 4mm² / 6mm² (AWG14/12/10)

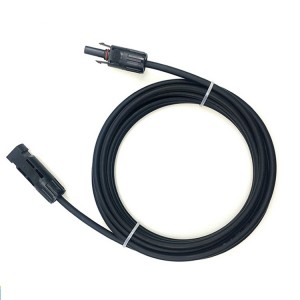

The built-in lock on the solar extension cables are designed to protect water and dust from entering the cables and to prevent cables from falling out due to outdoor environments.

All the solar panel cable connectors are made of excellent professional photovoltaic insulation plastic material. Double seal rings for better waterproof and dustproof effect, the waterproof level up to IP67. Also with excellent aging resistance and UV endurance, can be used in harsh environment.

Solar Cable Connectors will maintain the voltage of your panel configuration to match your battery size. Mc4 Branch Connector is a key component to parallel more panels into your solar system.
