Wherever there is a complex electrical system, there is likely also a wire harness or cable assembly. Sometimes called cable harnesses or wiring assemblies, these units serve to organize, consolidate, and protect electrical conductors. Since wire harnesses are custom designed for their application, they can dramatically improve a system’s efficiency.
Wiring Harnesses What is a Wiring Harness?

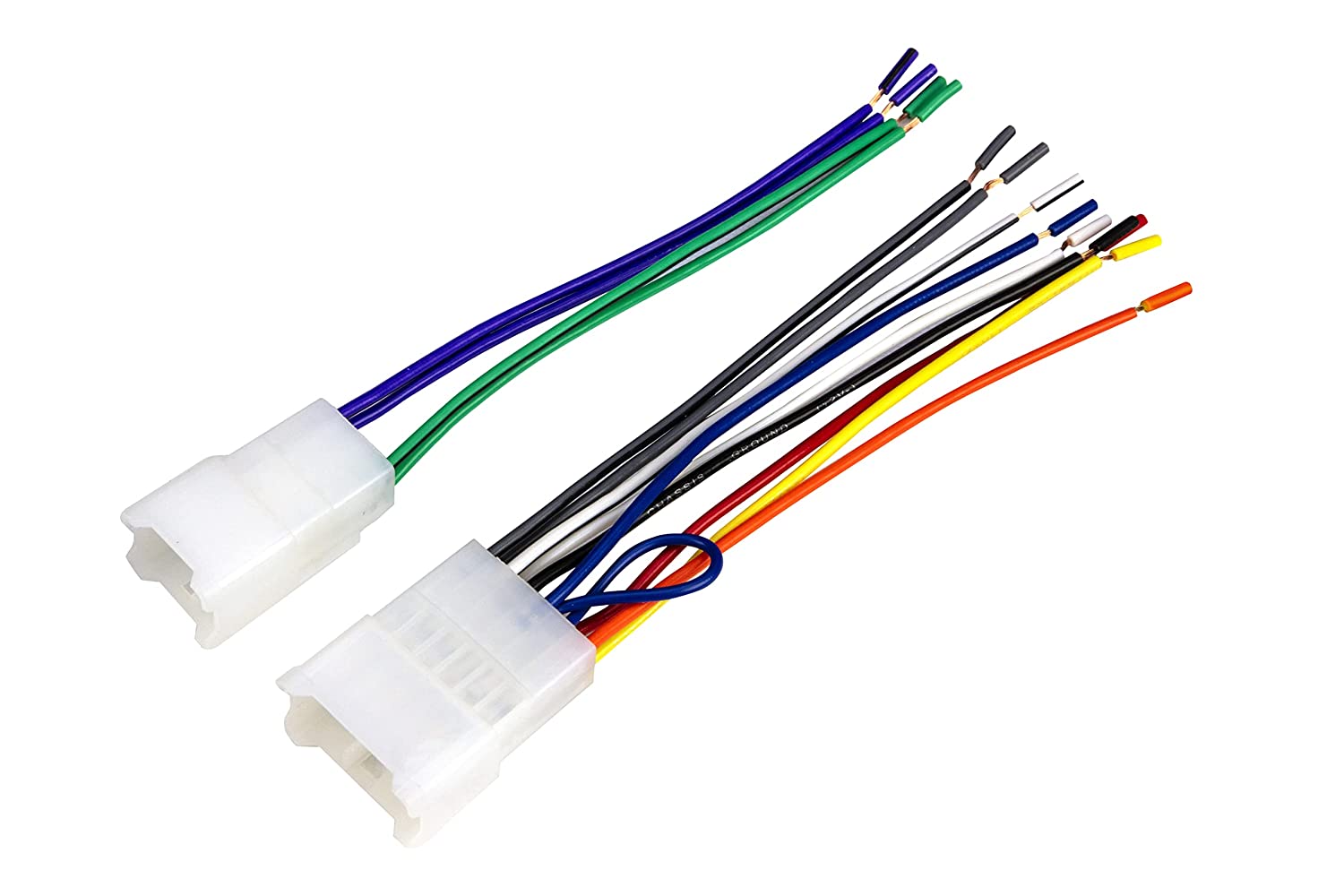

Simply, a wire harness is a bundle of cables and wires, plus the components used to sheathe, support, and organize them. These elements include tapes, sleeves, and ties, which keep cables in the optimum position for transmission. Wire harnesses are designed based on the electrical and geometrical requirements of the application and are used to simplify the connection to larger components.
What are Wiring Harnesses and Cable Assemblies Used For?
Wiring harnesses solve many challenges associated with electrical systems. By combining many individual wiring elements, they make it easier to connect and assemble complex systems. At the same time, they provide additional protection to wires and cables, preventing unwanted flexion and insulating bundles against the environment.
This combination of benefits means that wiring harnesses and cable assemblies are used across diverse applications. Most manufacturers find that combining electrical elements in a harness is a cost-effective way to improve performance while also simplifying installation. Uses can be found in industries ranging from aerospace to residential wiring.
Aerospace
Aerospace equipment often includes dense bundles of electrical and communication cables. Wire harnesses enable power transmission in aircraft engines, data transmission from satellites, and similar aerospace applications.
Automotive
The automotive industry makes extensive use of wiring harnesses and cable assemblies, including in both gasoline and electrical vehicles. In these contexts, harnesses are indispensable for saving space and ensuring wires fit around mechanical components. Organizing conductors is also essential for keeping distinct systems separate under the hood, enabling both efficient operation and easy maintenance. Automotive systems using harnesses include lights, turn signals, displays, and more.
Medical
In the hospital, clinicians must be able to quickly establish reliable connections. In many cases, this is a matter of life and death, such as when setting up critical care equipment. Harnesses enable these rapid links, keeping patients safe. Other medical applications include more permanent installations such as imaging equipment and dental chairs.
Telecommunications
Telecommunications systems may include anywhere from tens to thousands of cables, all of which must be organized to save space and facilitate identification. Assemblies serve this role, bundling cables for modems, routers, and similar communication equipment.
