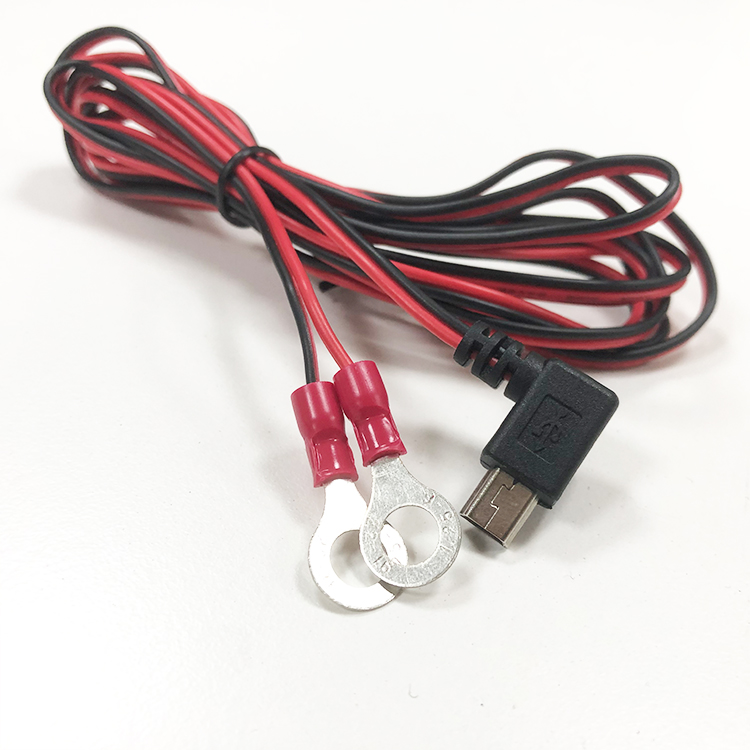

Terminal wire design is an important aspect of wire harness and cable assembly manufacturing. Terminal wires act as connectors between different components, facilitating the seamless transmission of electrical signals. To ensure the efficiency and reliability of these connections, several conditions must be carefully considered during the design phase. This article will delve into the fundamental aspects that should be evaluated when creating a terminal wire design.
First, the environmental conditions in which the wire will operate must be considered. Factors such as temperature, humidity, and the presence of chemicals or other contaminants can significantly affect the performance of terminal wires. For example, if the wire will be used in extreme temperatures, additional insulation or protective coating may be required to maintain functionality. Likewise, if the wires will be exposed to moisture or corrosive substances, corrosion-resistant materials must be used to prevent degradation. By understanding specific environmental conditions, engineers can design terminal wires that are robust and able to withstand anticipated challenges.
The mechanical stress experienced by the terminal wires is another key consideration. In many applications, wires are constantly subjected to vibration, shock or repetitive motion. If not properly addressed during the design phase, these conditions can lead to wire fatigue and eventual failure. Materials must be chosen that are flexible and durable enough to withstand mechanical stress without compromising performance. Additionally, strain relief, such as grommets or braided sleeves, can be used to reinforce the connection point and prevent excessive bending or pulling.
Conductivity is another important factor to consider in terminal wire design. Proper electrical conductivity is critical to ensure efficient transmission of electrical signals between components. When designing terminal wires, engineers must carefully evaluate wire gauge, material conductivity, and insulation performance. Using adequate gauge wire reduces resistance and prevents voltage drops. Copper is known for its excellent electrical conductivity and is often used as the main material in the manufacture of terminal wires. In addition, insulation materials must be selected based on their dielectric strength, ability to withstand voltage levels, and ability to withstand breakdown under specific operating conditions.
Compatibility between terminal wires and the connectors they connect to is another critical factor that cannot be overlooked. There are several types of connectors, such as crimp, solder, or screw terminals, each requiring a specific wire termination method. Ensuring compatibility between the wire design and the chosen connector is critical to making a safe and reliable connection. In addition, the mechanical and electrical characteristics of the connector, such as current carrying capacity and contact resistance, must match the requirements of the application. A thorough understanding of these compatibility aspects can prevent connection failures and signal loss, thereby improving the overall performance of the harness or cable assembly.
The overall length and routing of terminal wires also play an important role in the wire design process. It is critical to consider the distance between components and plan the routing of wires accordingly. Careful consideration of wire length can help avoid unnecessary excess that can lead to tangles or an inefficient installation. In addition, optimizing the routing of terminal wires can minimize the risk of interference or crosstalk between wires, thereby reducing the possibility of signal degradation. Utilizing wire harnesses or cable assemblies can help organize and manage terminal wire routing, ensuring an orderly and efficient installation.
Finally, compliance with industry standards and regulations is critical when designing terminal wires. Various certification bodies, such as UL and ISO, have established specific requirements that must be followed. These standards cover aspects such as material compatibility, flame retardancy and electrical safety. By adhering to these regulations, engineers can ensure the quality and reliability of terminal wires and guarantee the safety of end users.
In summary, terminal wire design requires careful consideration of multiple conditions to ensure optimum performance and reliability. Evaluating environmental conditions, mechanical stress, electrical conductance, compatibility with connectors, wire lengths, routing, and compliance with industry standards are all important aspects that must be addressed during the design phase. By following these guidelines, engineers can create terminal wires that meet the specific requirements of each application, ultimately improving the overall efficiency and safety of wire harnesses and cable assemblies.
