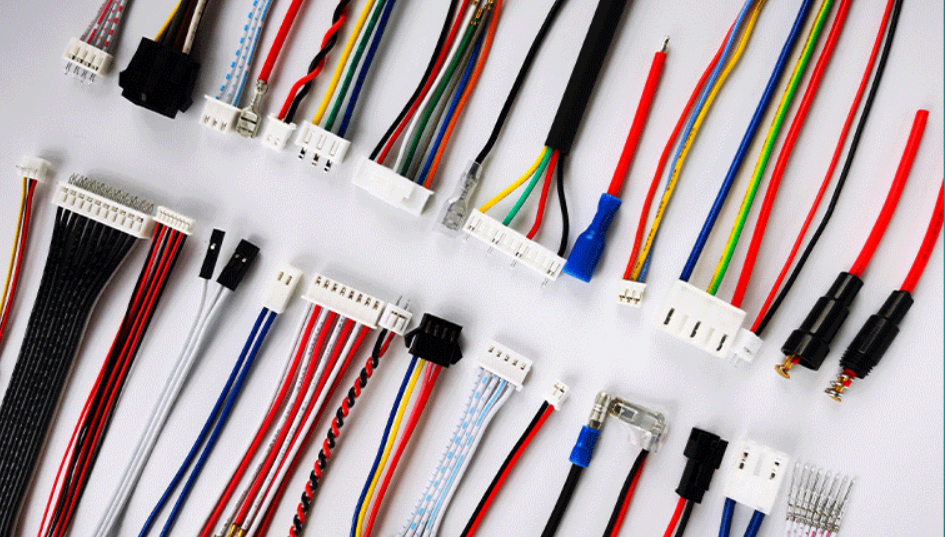

Terminal wire is the most common connection wire product within electrical equipment. With a choice of different conductor and spacing, making it easier to connect the motherboard to the PCB board.
So how do we determine the specific specifications and models of the terminal wire used? The following is the method of determining the specification and model of the terminal wire.
The first is how to determine the common terminal, such as 1.0mm, 2.0mm, 2.54mm terminal wires. Before judging, we need to understand the meaning of this data. In fact, 1.0mm, 2.0mm, 2.54mm is the distance between the adjacent pins of the terminal wire.
When we get the terminal wire, the easiest way to determine the specific specifications is to first measure the distance, according to that, we can roughly know the terminal model used in the wiring harness.
Next, in addition to measuring the distance, we must also determine whether the terminal connector with the pin, the pin is divided into straight pin and angle pin.
In addition, for some cold-pressed circular terminals, it is necessary to measure the inner circle diameter, outer circle diameter and circular thickness, which can know some specific parameters of cold-pressed circular terminals, in order to find out which kind of cold-pressed circular terminals.
Finally, in the face of some special terminals, such as Molex, JST, Hirose brand terminal housings, we need to measure the length and width of the pin spacing. And the customer can also provide pictures or design drawings to professional manufacturers, who have many years of experience in this industry and can often know the specification of the terminal wire in the face of some special terminal rubber housings!

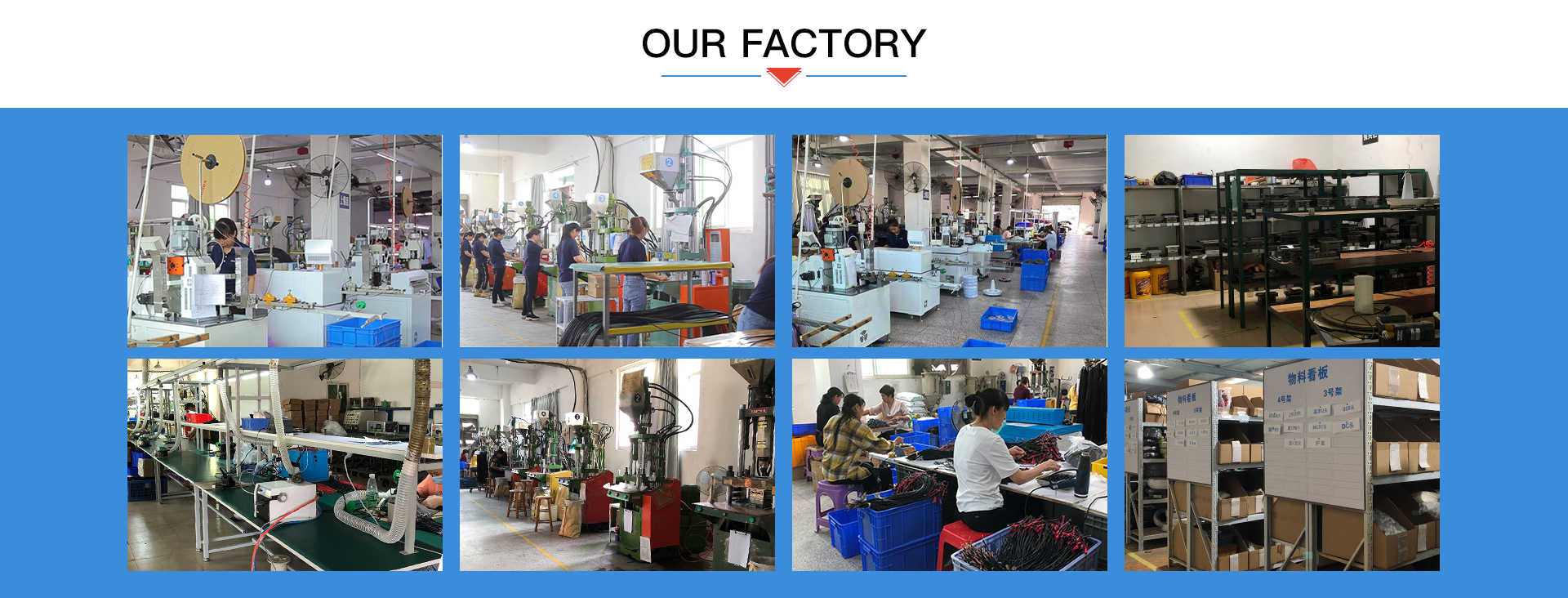

Xiamen Changjing Electronic Technology Co., Ltd. specializes in high quality terminal wire, electronic wire, row wire, processing customization for 10 years, the production are in line with environmental protection ROHS requirements, products have passed 3C, UL and ISO certification, etc.
