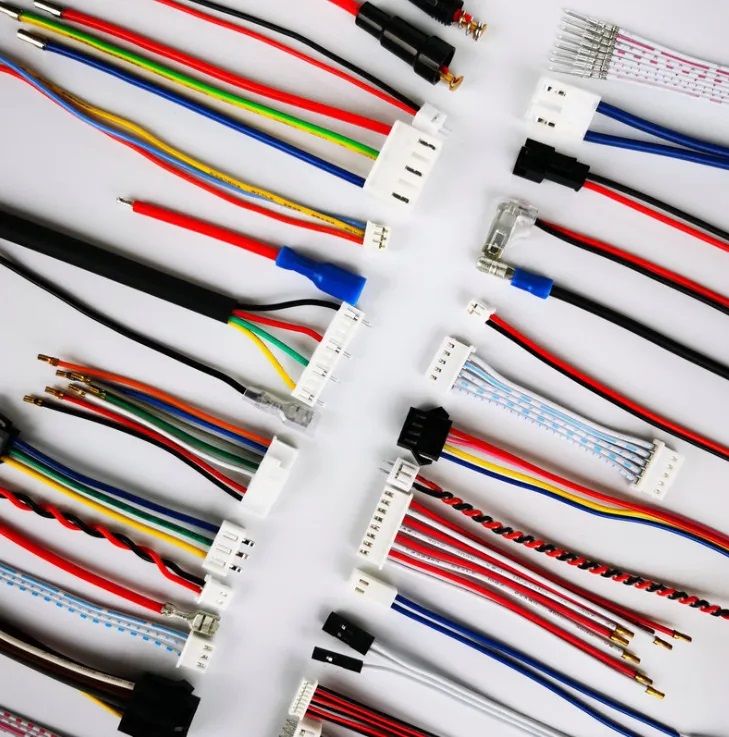

Wire Harness Assembly The terms wire harness and cable assembly are often used interchangeably, but they are not the same. Instead, they have definite differences. In this article, I will discuss five main differences between a wire harness and a cable assembly.
Before starting with those differences, I want to define a wire and a cable. A wire is a single strand of an electrical conductor, typically copper, aluminum, or something steel. A cable is a bundle of wires with two or more insulated wires wrapped in one jacket. Most cables contain a positive wire, a neutral wire, and a grounding wire.
Five key differences between a wire harness and a cable assembly:
1. Environments – Each is utilized in various environments. Wire harnesses provide minimal protection for wires. Its purpose is to organize wires and cables efficiently. It cannot shield them from extreme temperatures or friction between one another. They are fundamentally used for indoor use.
Cable assemblies guard all the products safe in the most extreme conditions and are ideal for outdoor use. It’s a high-level resistance to outside variables such as heat, dust, and moisture. It also protects the wire and cables from friction and corrosion.
2. Cost – Wire harnesses are a low-cost electrical solution that best keeps electric cables and wires organized. By bundling these wires and cables together, engineers can keep their wiring systems organized. It doesn’t concentrate on giving added protection to its wires and cables and usually requires less material and effort. Thus, it costs less compared to the cable assembly. Although cost-friendly, it still relies on the type, number, and quality of cables, wires, or connectors used in the production.
However, the cost of the cable assembly is satisfactory because of the added protection it provides. Cable assemblies offer more vigorous protection by keeping components snug within a rugged outer sheath. In addition, cable assemblies are intended to be utilized in demanding environments where things like heat, friction, or moisture could untimely wear out a cable or wire.
3. Physical Attributes – The essential difference between a wire harness and a cable assembly is their physical attributes and function. A wire harness offers a cover that encases single cables, usually from the same material utilized in a cable assembly. One can see and remove an individual cable from a wire harness. In comparison, a cable assembly has multiple wires but is bundled together by a single external sleeve. It comes as a only one thick wire.
4. Products – Many of our everyday household products and tools use wire harnesses. These products are computers, televisions, monitors, microwaves, and refrigerators. These products use wire harnesses rather than of cable assemblies because these products come with a protective shell, which removes the requirement for added protection. Wire harnesses are also present in most automobiles and airplanes.
Cable assemblies are used for severe environmental conditions or extreme temperature changes. In addition, many heavy industries such as medical, military, aerospace, and construction generally use cable assemblies in their manufacturing processes. They need the cable assembly to protect areas such as the electric flow in its wires or cables. They are the perfect for high-speed data transfers.
5. Purposes – Wire harnesses serve two primary purposes:
To protect outside factors from harm caused by the flow of electricity. To ensure wiring systems are organized and straightforward for technicians to understand. Cable assemblies serve three primary purposes:
To protect outside factors from harm caused by the flow of electricity. To ensure wiring systems are organized and straightforward for technicians to understand. To protect the wiring or cable against wear and tear or other harsh environmental conditions.
