DB9 9Pin Serial Port Female to RJ45 Male Network Cable for Routers Switches Firewall Equipment

Short Description:

  • DB9 female to RJ45 male network cable for TCP/IP network interface with the doual-way conversion, with the serial port network function, support serial data and network data bi-directional transparent transmission;
  • Connect the equipment serial port to the RJ45  port on routers, the cable can help engineer through the PC update the network device settings and device understratum operating;
  • Compatible with most routers switch on the market.


Product Detail

Product Tags

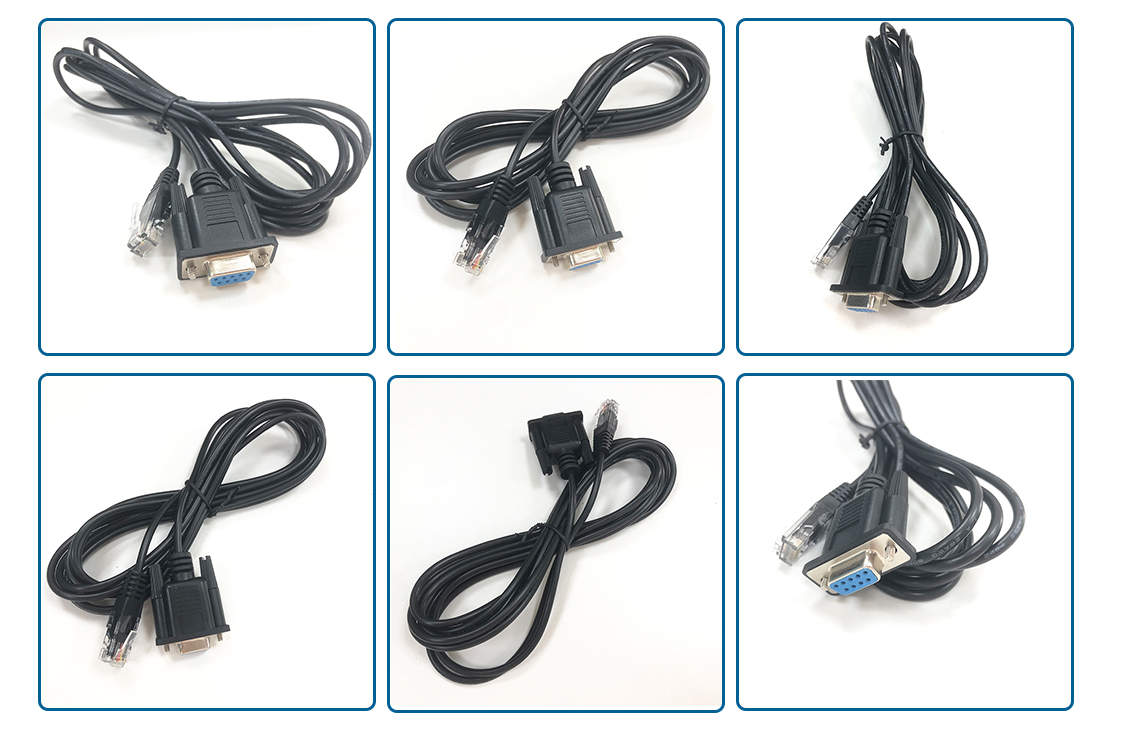

01 product description

产品展示

  • RJ45 to DB9 Cable uses a high-quality nickel-plated interface and a high-quality PVC injection shell, which has the functions of wear resistance, durability, and smooth transmission.
  • RJ45 to DB9 female conversion cable is an ideal alternative data cable for reprogramming and updating compatible devices and devices; it can also be used to configure other network devices.

02 Technical Specification

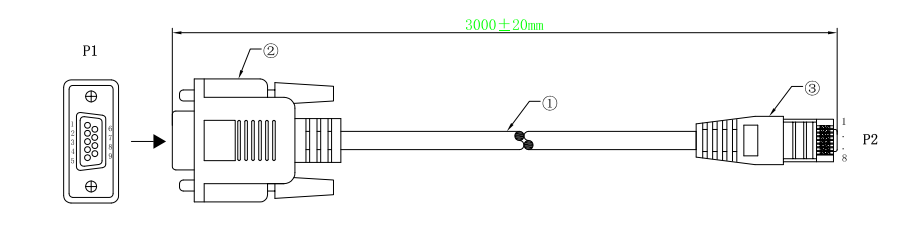

drawing

Product Name DB9-RJ45 Network Cable
DB9 Female PVC Black Injection
RJ45  Male 8P8C PCV Black Injection
Cable UL2464/26AWG*3C
Voltage 300V
OD 3.7±0.15mm

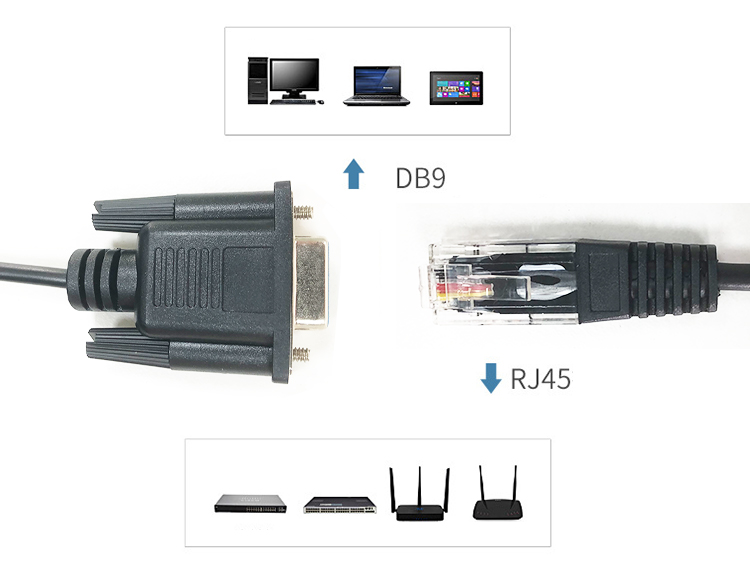

03 Application

application

  • DB9 female to RJ45 male cable connects your computer's serial port to the RJ45 console port of routers, switches, firewalls, wireless devices, etc., for reprogramming and updating compatible devices.

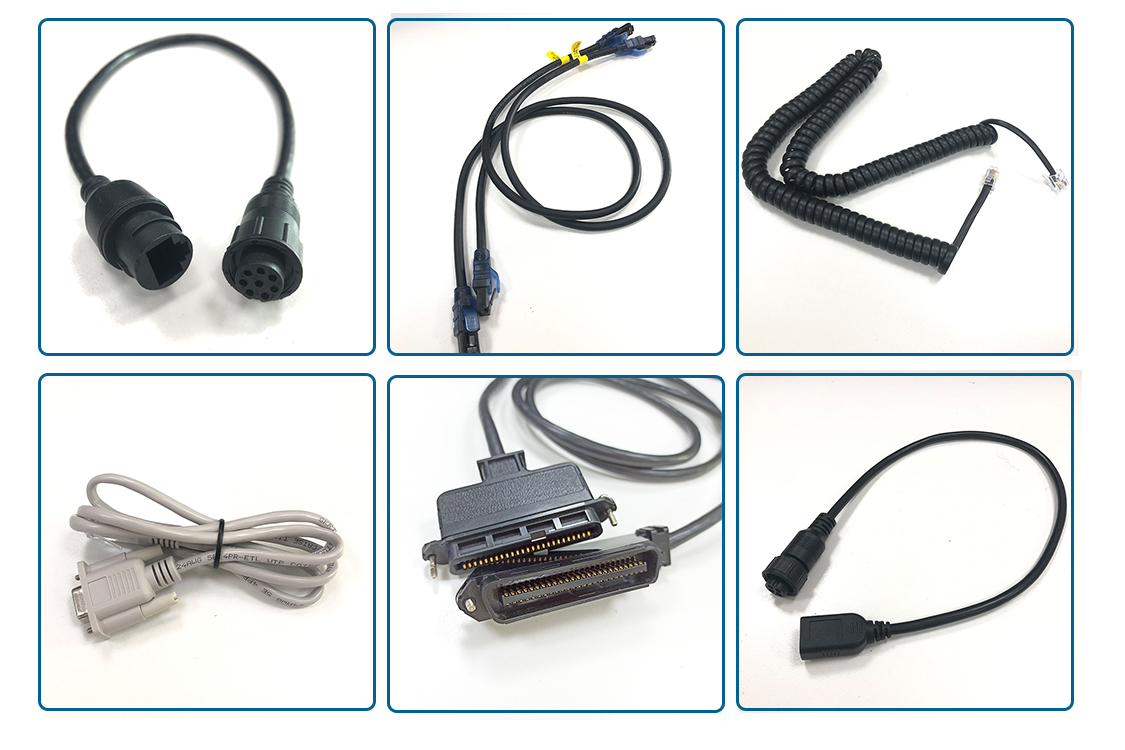

04 recommend product
